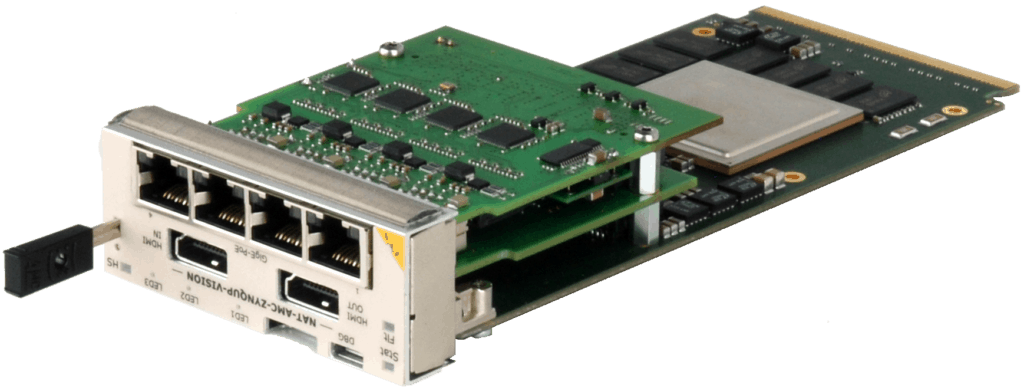

NAT-AMC-ZYNQUP-VISION

The NAT-AMC-ZYNQUP-VISION is an integrated hardware platform for machine vision and deep learning applications. It combines a Xilinx® Zynq® UltraScale+™ FPGA MPSoC with Power-over- Ethernet (PoE) switching and HDMI video interfaces to enable high performance algorithm processing.

Key Features:

  • Xilinx ZYNQ Ultrascale+ MPSoC
  • Quad GigE-Vision input camera interface with PoE
  • HDMI 2.0 4K Input and Output
  • Quad Channel DDR4-2400 for fast image buffering
  • PCI-Express Gen 3.0 (x8)

Applications:

  • Image and video processing
  • Machine Vision
  • AI/Deep Learning/Neural Networks
  • Custom applications

NAT-AMC-ZYNQUP-FMC

The NAT-AMC-ZYNQUP-FMC is an AdvancedMC (AMC) featuring a Xilinx Zynq® UltraScale+™ MPSoc and an FPGA mezzanine card (FMC) slot. This single-width AMC is designed for high performance processing and, using FMC modules, can enable sophisticated machine vision, software defined radio (SDR) and wireless applications. The Xilinx Zynq® UltraScale+™ MPSoc provides the software programmability of an ARM®-based processor with the hardware programmability of an FPGA, enabling key analytics and hardware acceleration while integrating GPU, FinFET and programmable logic

This card combines performance with the ability to add functionality through a wide range of off-the-shelf FMCs, including analog-to-digital and digital-to-analog converters, digital I/O, Power-over-Ethernet (PoE) and RF modules. N.A.T. can also customize this module to suit your application.

Key Features:

  • Xilinx ZYNQ Ultrascale+ MPSoC
  • High pin-count FMC slot complies with VITA 57.1
  • Implement any I/O standard with FPGA PHY technology
  • Separate DDR4 (x64, 1200-2400Mb/s) for ARM CPU
    and FPGA – up to 8 GB each
  • Memory Extension Card for supporting QDR-IV
    SRAM (144Mb) or 2 DDR4 x8 Banks 1GB each
  • PCI-Express Gen 3.0 (x8)
  • Single-Width, Full-Size or Mid-Size

Applications:

  • Image/video processing
  • Machine vision
  • Software-defined radio (SDR)
  • Cellular base station

NAT-AMC-ARRIA10-FMC

The NAT-AMC-ARRIA10-FMC is an AdvancedMC (AMC) featuring the Intel® Arria® 10 GX or SX FPGA and a high pin-count FMC slot (VITA 57.1). Intel® Arria® 10 FPGAs deliver massive performance and power consumption improvements compared to prior-generation FPGAs, both midrange and high-end devices.

This card combines performance with the ability to add functionality through a wide range of off-the-shelf FMCs, including analog-to-digital and digital-to-analog converters, digital I/O, Power-over-Ethernet (PoE) and RF modules. N.A.T. can also customize this module to suit your application.

Key Features:

  • Intel® Arria® 10 GX or SX FPGA
  • Choice of GX1150 / GX900 / GX660 / SX660 / GX 570 / SX 570
  • Implement any I/O standard with FPGA PHY technology
  • Up to 16 GB DDR4 with ECC
  • PCI-Express Gen 3.0 (x8)
  • Single-Width, Full-Size or MidSize

Applications:

  • Video and image processing
  • Machine Vision
  • Software-defined Radio (SDR)

NAT-FMC-4GigE-PoE

The NAT-FMC-4GigE-PoE is a FMC Vita 57.1 standard compliant Ethernet switch module with support for Power over Ethernet (PoE).
It provides 4 front panel GbE ports compatible with IEE802.3af. The board is capable to drive 15.4 W power per link.

Key Features:

  • 4 IEEE 802.3af compatible front ports
  • High efficient power converter
  • FMC HPC Connector

Applications:

  • Aggregation of Video/Camera Links for centralized processing
  • Quality Inspection
  • Pattern Recognition
  • Public safety

NAT-FMC-HDMI4k

NAT FMC HDMI4k assemblyside isolated

The NAT-FMC-HDM4k is a FMC Vita 57.1 compatible module with stacking option.
It provides 2 front panel HDMI ports (input and output) capable of streaming 4K video @ 60 fps.

Key Features:

  • HDMI input and output (4K, 60 fps)
  • High speed differential signalling using DP4-7
  • FMC HPC Connector
  • Stackable

Applications:

  • Video Streaming and Pass-Through
  • Quality Inspection
  • Pattern Recognition
  • Public safety

NAT-AMC-TCK7

The NAT-AMC-TCK7 is a high-performance, low-latency data processing Advanced Mezzanine Card (AMC) based on the Xilinx® Kintex™-7 FPGA, which provides industry-leading performance-per-watt. The N.A.T. module combines processing power, memory, communications links and reference clock signals in a double-width, mid-size MicroTCA.4 AMC form factor.  It provides a number of low latency links via the front panel, the backplane and a rear transition module (RTM), with up to 10 Gbps* throughput.

Key Features:

  • Xilinx® Kintexâ„¢-7 FPGA (XC7K355T or XC7420T)
  • Double-width, mid-size MicroTCA.4 AMC (full-size option)
  • 8x 10 Gbps* SFP+ external interfaces
  • 4x4Gb 1066 Mbps 64-bit DDR3 SDRAM
  • Mid-Size

Applications:

  • Video and image processing
  • Machine Vision
  • Avionics Video Distribution System
  • High Energy Physics Research
  • Software Defined Radio (SDR)
